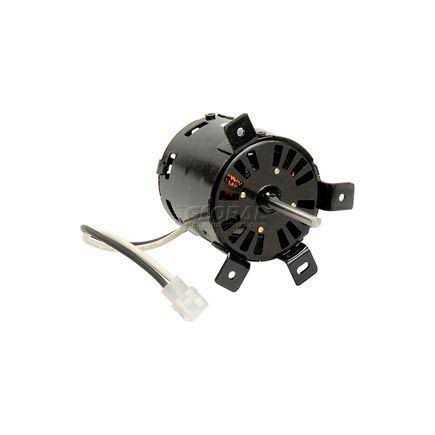

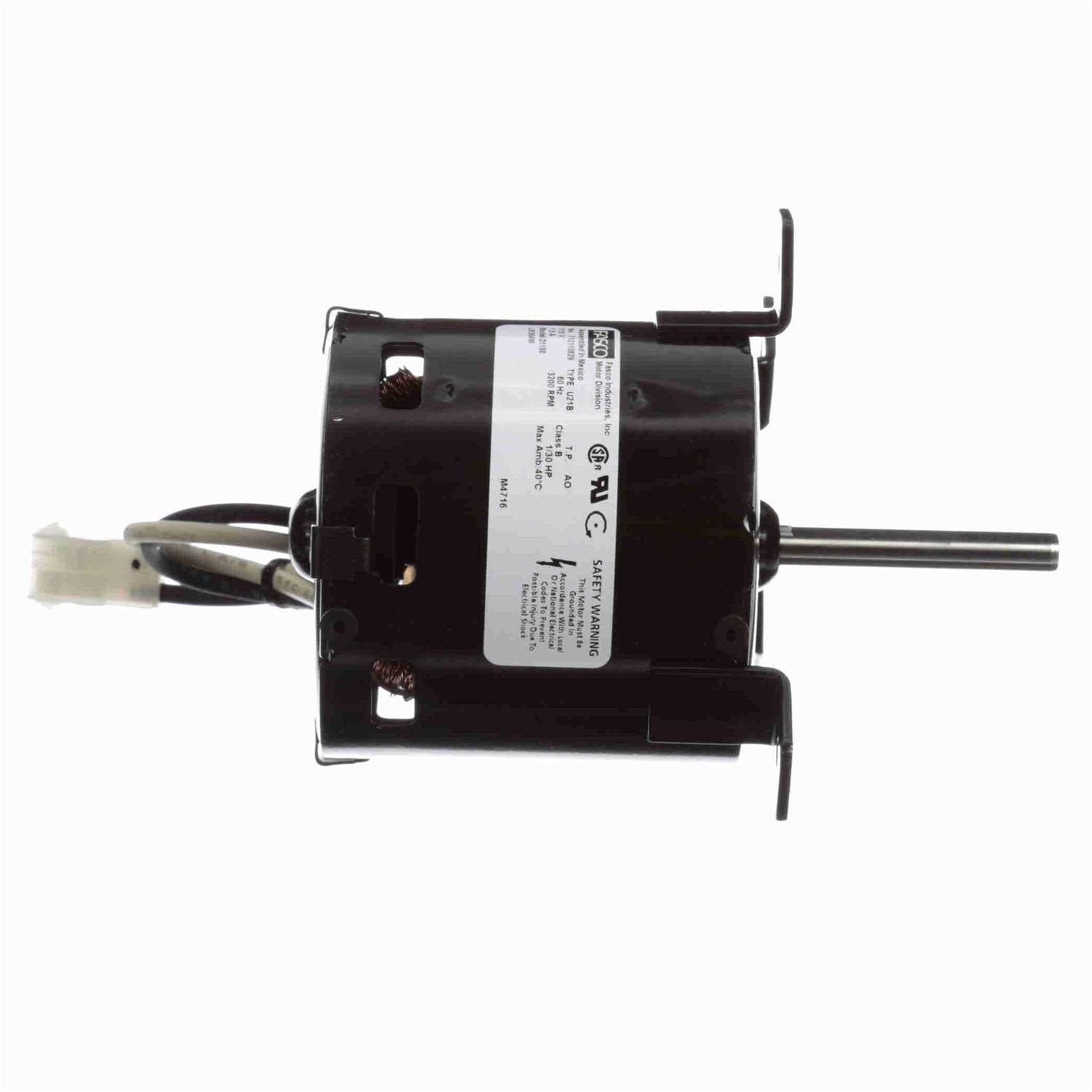

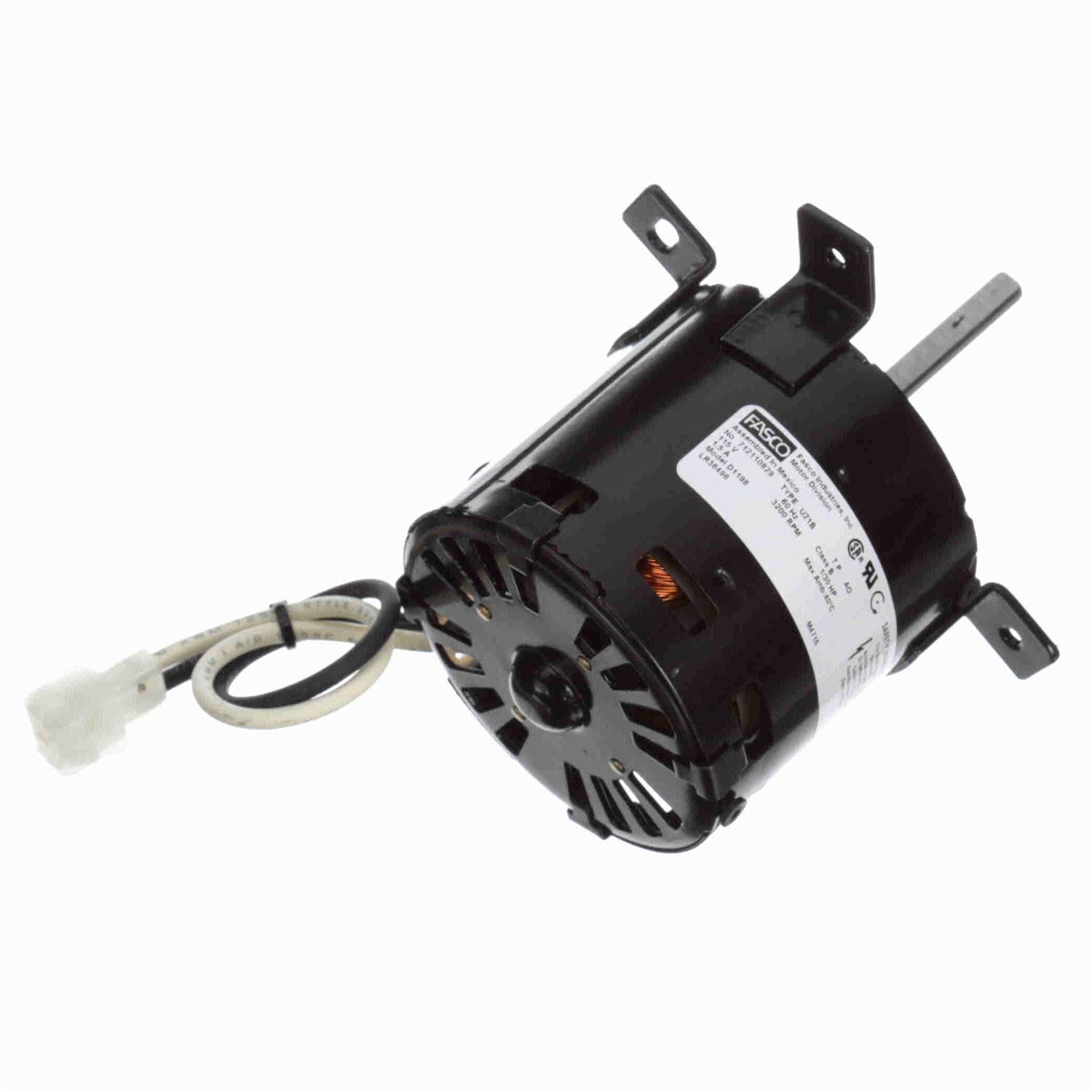

Fasco Motor,1/30 HP,3200 rpm,3.3,115V D1198
$72.99
Fasco Motor,1/30 Hp,3200 rpm,3.3,115V D1198
- 3.3″ Diameter
- Thermally Protected
- Open Shaft End and Lead End End-Frame, Semi-Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 5/16″ Diameter Shaft with Flat
- 8″ Leads with Socket Terminal
- Lug Mount Shaft End
Description
Condenser Fan Motor, Single Phase, Motor Design Shaded Pole, 1/30 HP, Nameplate RPM 3,200, No. of Speeds 1, Voltage 115V AC, Full Load Amps 1.5 A, 3.3 in Frame, OEM Replacement Brand Lennox, Replacement For 7121-8774, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Air-Over, Motor Mounting Type Lug, Motor Frame Material Steel
