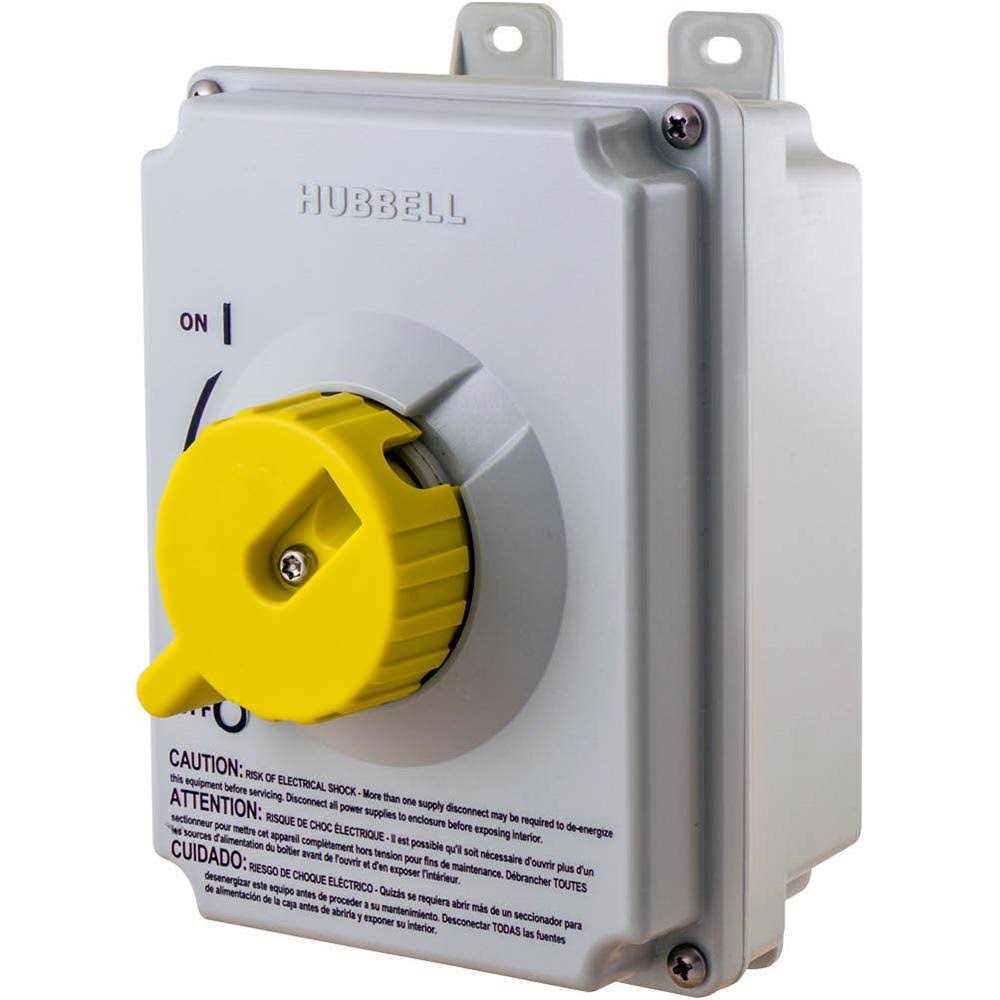

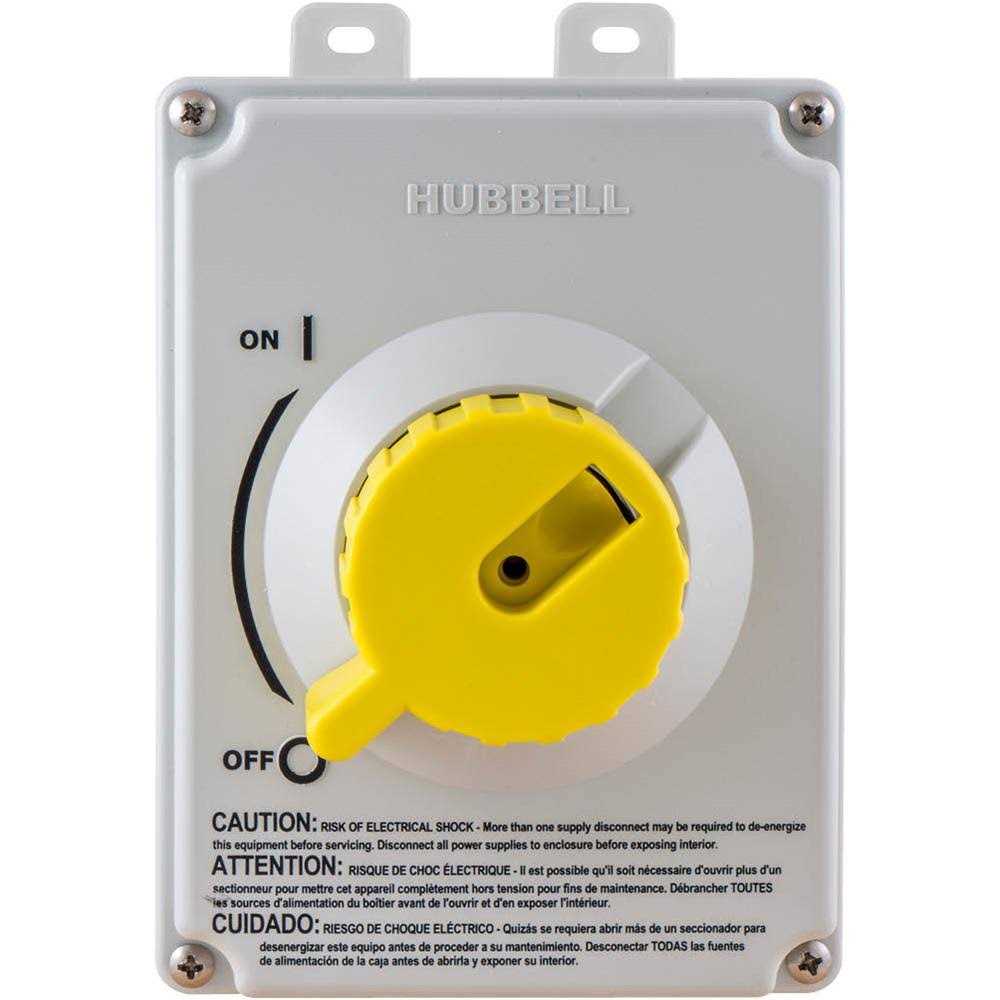

Hubbell HBLDS3 Disconnect Switch

It has power rating of 1 hp at 120-Volt AC, 7.5 hp at 240-Volt AC and 15 hp at 480/600-Volt AC. Dielectric voltage rating of this disconnect switch is 2200-Volt AC. This 3-Phase disconnect switch with terminal screws connection, accommodates wire of size 14 – 10-AWG. It features NEMA 4X non-metallic Valox enclosure to resist abuse/corrosion and enhance safety. Enclosure of this disconnect switch has three molded-in conduit drill points on the top, bottom and back surface. Switch measures 7.62-Inch x 5.12-Inch x 4.12-Inch. It has neoprene gasket to provide water-tight seal between cover and base. Switch withstands operating temperature range of -40 to 75 deg C. It provides IP67-degree of protection. Disconnect switch is UL listed and CSA certified.
