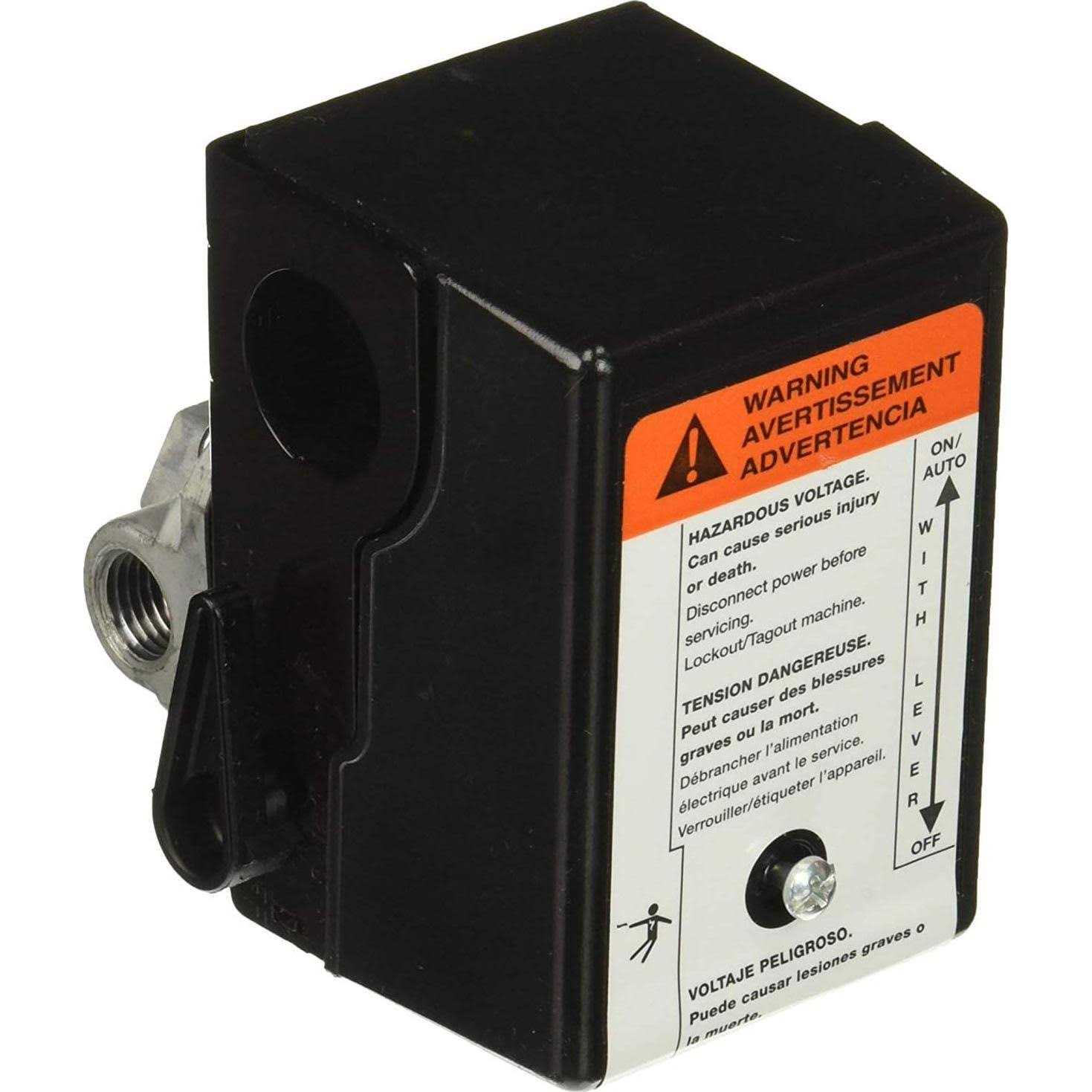

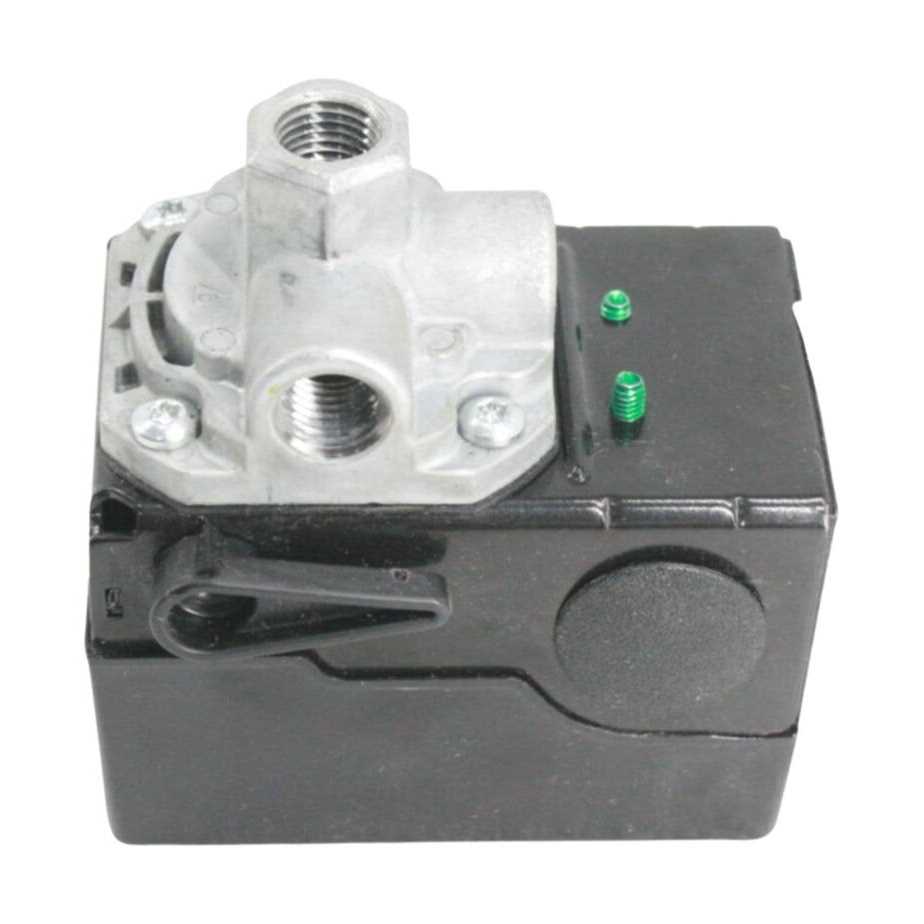

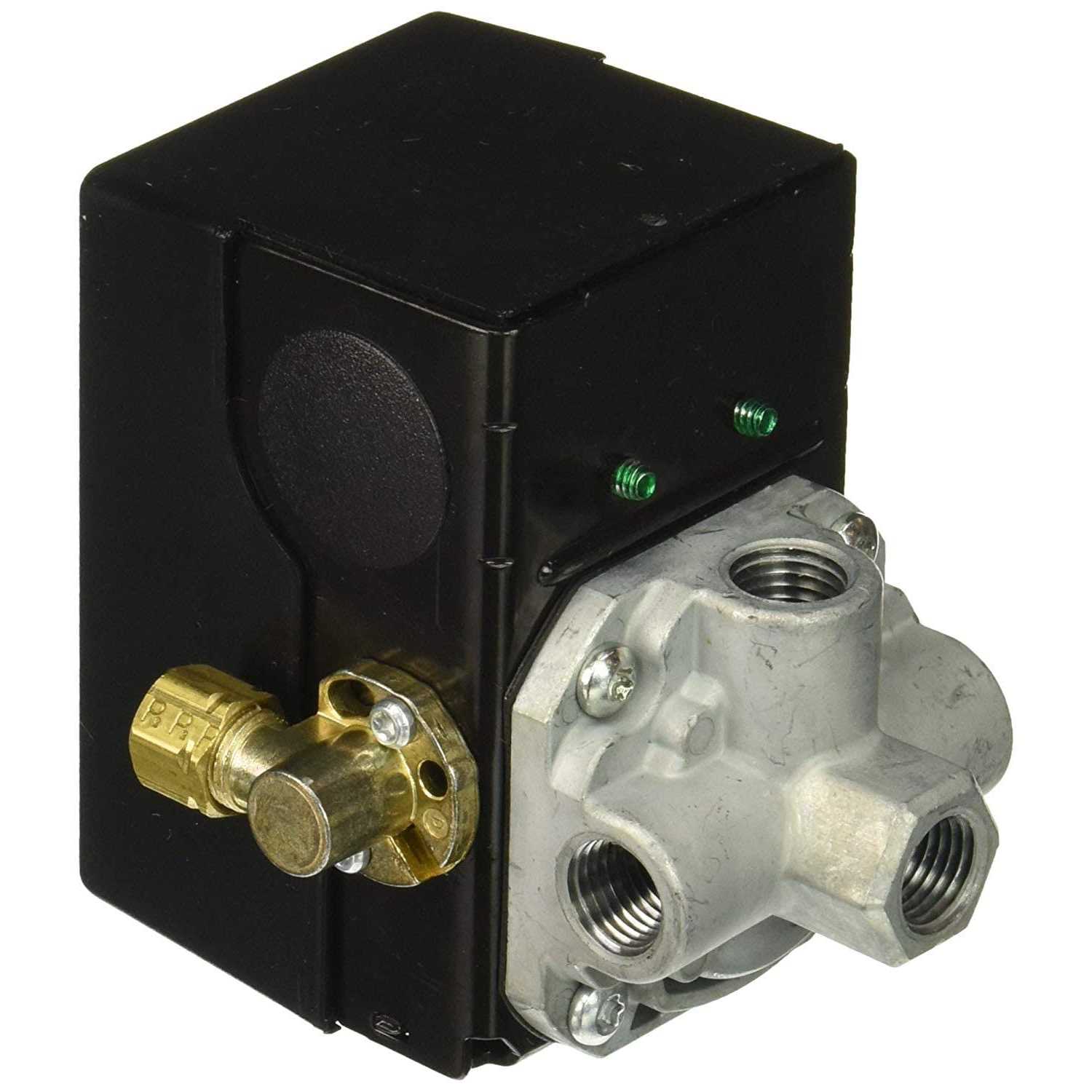

Ingersoll Rand 23474653 Pressure Switch for Single Phase Compressor

Ingersoll Rand 23474653 Pressure Switch for 2-Stage Compressors Return your air compressor to peak performance with the Ingersoll Rand 23474653 Pressure Switch for single phase power installations. This genuine OEM replacement part is designed for Ingersoll Rand 5 HP reciprocating air compressor models, including models TS4N5 and 2340L5/N5/D5 Single-Phase compressors. The presure switch monitors air pressure in the tank, switching the motor on and off as needed in order to maintain optimal pressure. Featuring a NEMA type 1 indoor enclosure, it has a built-in unloader valve and is rated for applications at 135 PSIG cut-in and 175 PSIG cut-out. Keeps Air Pressure Consistent and Reliable The pressure switch for your Ingersoll Rand air compressor measures the pressure inside your air tank and helps the machine maintain proper pressure levels as you work. When the pressure switch wears down or becomes faulty due to amp fluctuation, the operating pressure band can be affected leading to short cycling and sub-optimal performannce. This Ingersoll Rand replacement pressure switch helps adress these issues.
