Leviton Duplex Receptacle 5842
$6.99

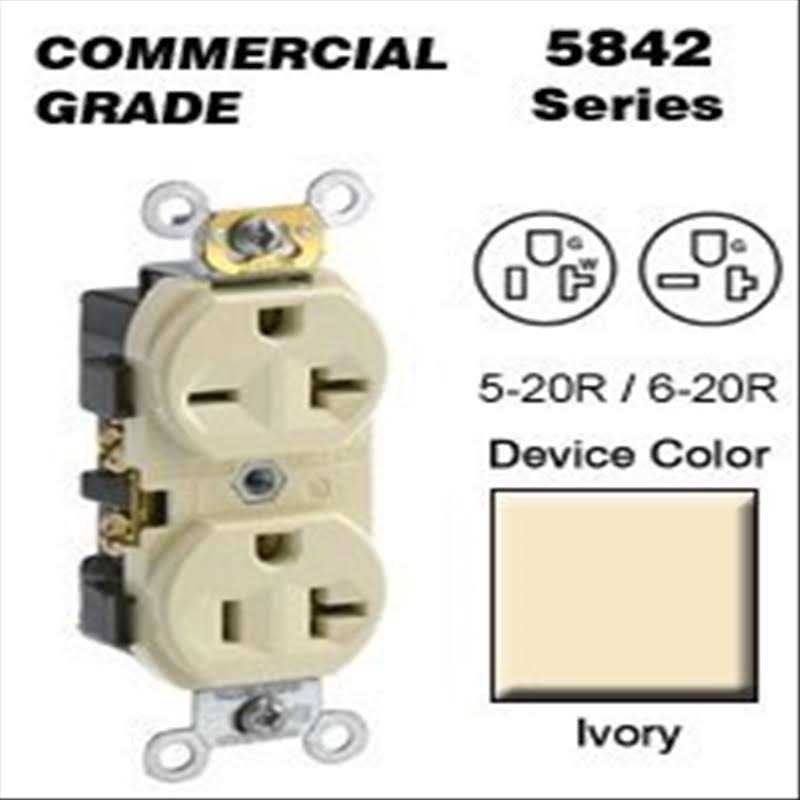

Leviton 5-20r_6-20r Duplex Receptacle Commercial – Ivory 5842-I
- Designed to withstand the most demanding environments
- Maximum wiring room from shallow design
- Perfect for use in hospitals, schools, hotels, office buildings
- Large-head terminal screws, backed out and staked, accept no.10 copper or copper-clad wire
- Heavy-duty brass power contacts for maximum conductivity and plug retention
- Heavy-gauge, rust-resistant steel mounting strap
- Shallow design for maximum wiring room in box
Description
Leviton Straight blade duplex receptacle in ivory color features nylon body and face for impact as well as rust resistance. Receptacle has a power rating of 1 hp at 125 Volts/2 hp at 250 Volts and comes with zinc-plated steel strap and clamp nuts. It works at full rated current and can withstand dielectric voltages up to 2000 Volts. It features large-head terminal screw that is backed out and staked for easy installation. It can withstand various demands of commercial/institutional applications and features shallow design for maximum wiring room in box as well as captive mounting screws for quick installation. The 2-Pole self-grounding receptacle has three-wire circuitry and comes with 0.031-Inch thick heavy-duty brass triple-wipe line contacts for longer service life. Receptacle has current rating of 20 Amps. Receptacle has back and side wired connection for added convenience. It measures 1.560 Inch x 1.090 Inch x 4.060 Inch. It can accommodate a wire of size 14 – 10 AWG and has brass-hot, green-ground and silver-neutral terminal for easy identification. It has brass 10-32 terminal screws, brass 8-32 grounding screw, brass plated ground clips and 5-20R/6-20R NEMA configuration. It has a rated V-2 flammability and operates at -40 to 60 deg C temperature. It can be used to achieve superior flush alignment by the convenient washer-type break-off plaster ears. Receptacle is UL 498 listed/CSA certified and meets NEMA/ANSI standards.
